Pikasola Wind Turbine Vertical Axis Generator 200W12V + 2 PCS 100W 12V Monocrystalline Solar Panel Kits Suit for RV Marine Home Solar Wind Hybrid System

Price: $148.99 - $539.98
(as of Feb 13, 2026 02:39:54 UTC – Details)

Product description

2 PCS 100W 12V Monocrystalline Solar Panel

Maximum Power: 100 WMaximum Power Voltage: 18VMaximum Power Current : 5.56AOpen Circuit Voltage: 22.14VShort Circuit Current: 6AMaximum Series Fuse 15APower Selection: +-3%Maximum System Voltage: IEC1000V

For field connections:use minimum 4 mm²(No.11AWG)copper wires, insulated for a minumum 90℃

200W 12V 5Blades Wind Turbine Vertical Axis Generator kit with Charge Controller

Rated power:200 WMaximum power:220 WNumber of blades:5Rated voltage:12 VStart-up wind speed:1.5 m/sRated wind speed :11.5 m/sWorking speed:3-25 m/sSurvival wind speed:45 m/sBlade Material: Nylon FiberWind Direction Adjustment: Automatically Adjust The Windward Angle

Reliable Pikasola Solar Panel

High Efficiency Solar Cell

The Monocrystalline panel is made up of Highly efficient Solar Cell which grade up to A+.This solar cell conversion efficiency update 24% which help to charge battery more power in low-light environment.

Aluminum Alloy Frame

Corrosion Resistant Aluminum Frame and Toughened glass make panel to Withstand high winds and snow loads, last working as long as possible.IP-65 Waterproof Junction Box provides complete protection against environmental particles

Easy Installation

2x 16ft+2×10 ft 11 AWG Solar Cable&2-in-1 Y type connector to parallel 2pcs panels as 200W 12V systemCompatible with different mounting way, such as Z-Brackets, Pole Mounts and Tile Mounts.

200W 12V 5Blades Wind Turbine Vertical Axis Generator kit with Charge Controller

High efficiency

1.Three-phase permanent magnet synchronous motor. Efficient and compact ac generator with high performance NdFeB permanent magnet.

2. A fully integrated voltage regulator that automatically shuts down when the battery is fully charged.

3.The wind is controlled by intelligent microprocessor, which can effectively adjust current and voltage.

4.The unique magnetic circuit design makes the starting torque very small, which can effectively ensure the wind turbine’s breeze starting ability.

High quality

1. Wind turbine blade is made of reinforced fiber nylon, which more strong flexibility and high safety factor. The optimized aerodynamic shape and structural design, make the wind energy utilization coefficient is high, and increasing more power generation.

2. Double bearings make it low vibration operation and quietly. Also let wind generation can start in low wind speed, silent rotation in stably, high utilize rate of wind energy.

3. The surface of the wind turbine with special spraying treatment that provide excellent resistance to oxidation and corrosion under any harsh conditions. As well as excellent corrosion resistance, water resistance and sand resistance.

Easy installation

1.Take out the wind turbine, put the wind turbine on the tower and align it with the flange hole. Mount the four flat gaskets on the four bolts, then insert the bolts into the holes corresponding to the flange. Tightening the screws by hex key.

2.The three wires of the wind turbine are connected to the transmission cable, each pair of wires is not less than 30 mm, and the tape at the connection end is at 100 mm.

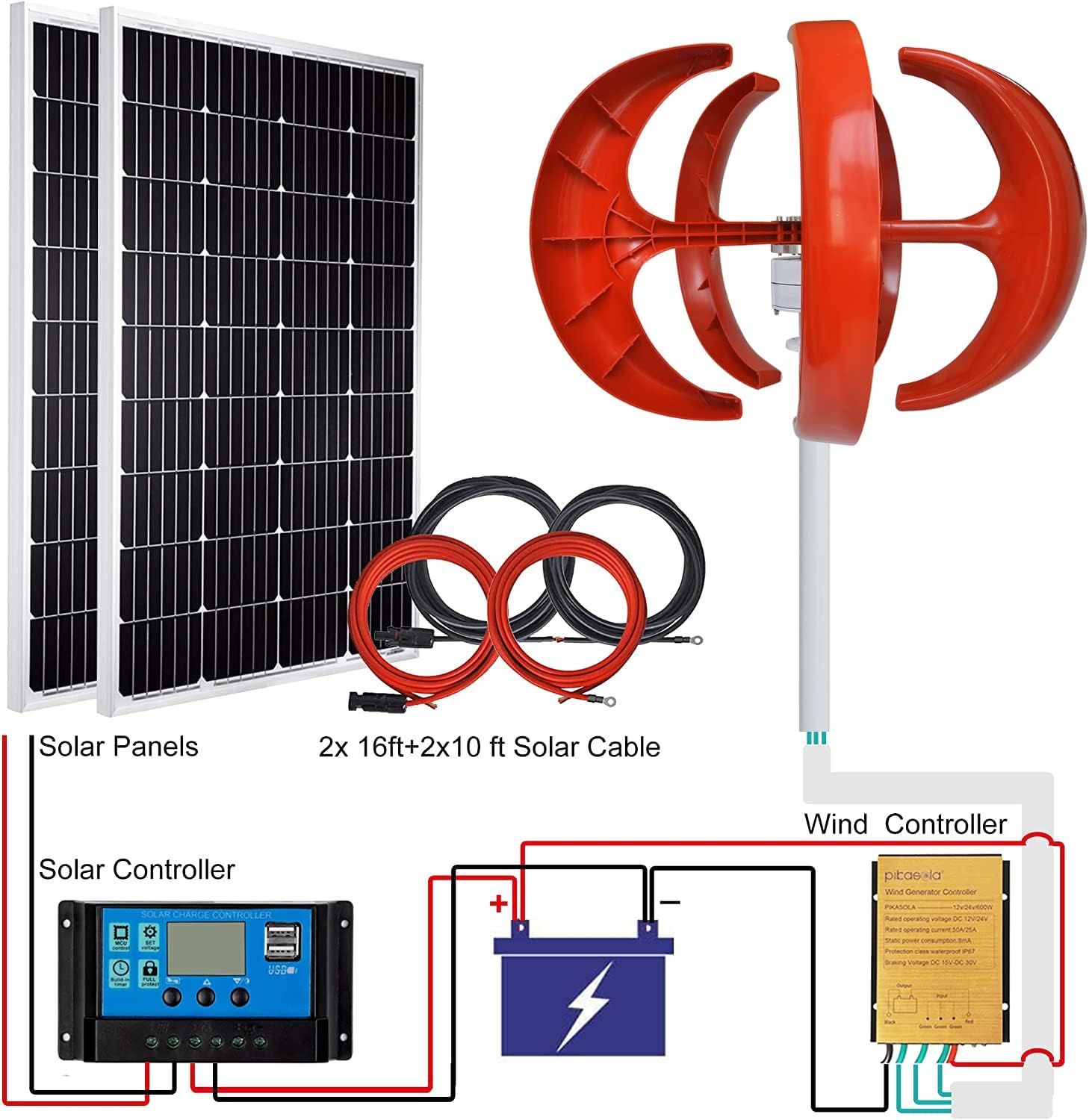

3.Connect the wind turbine’s cable to the controller and the battery must be connected to the controller before wiring.

The Pikasola 200 Watt Monocrystalline Solar Charging Kit is the ideal solution for providing back-up power or off-grid power when you need it!

It is a Starter Kit including a 20A Solar Charge Controller with dual USD socket, digital display and PWM function.

Pikasola solar panel kit widely applied to off grid battery charging or DC applications.Suitable for Caravan, RV, Golf car, Boat, Green house, Marine, Dry Camping, Garden watering, Shed, Cabin, Gate opener, etc.1. Wind Turbine starting with low speed; high wind energy utilization; beautiful appearance; low vibration on operation.2. Wind generator Blade adopt reinforced fiber nylon which more durable and strong ability of Anti-wind. With optimized aerodynamic shape and structural design, has a High wind energy utilization.3. Our wind turbine adopting patented permanent magnet rotor alternator, with a special kind of stator design, decrease resistance torque of the generators efficiently.4. Being installed by human design and easy for installation, maintenance and repair.

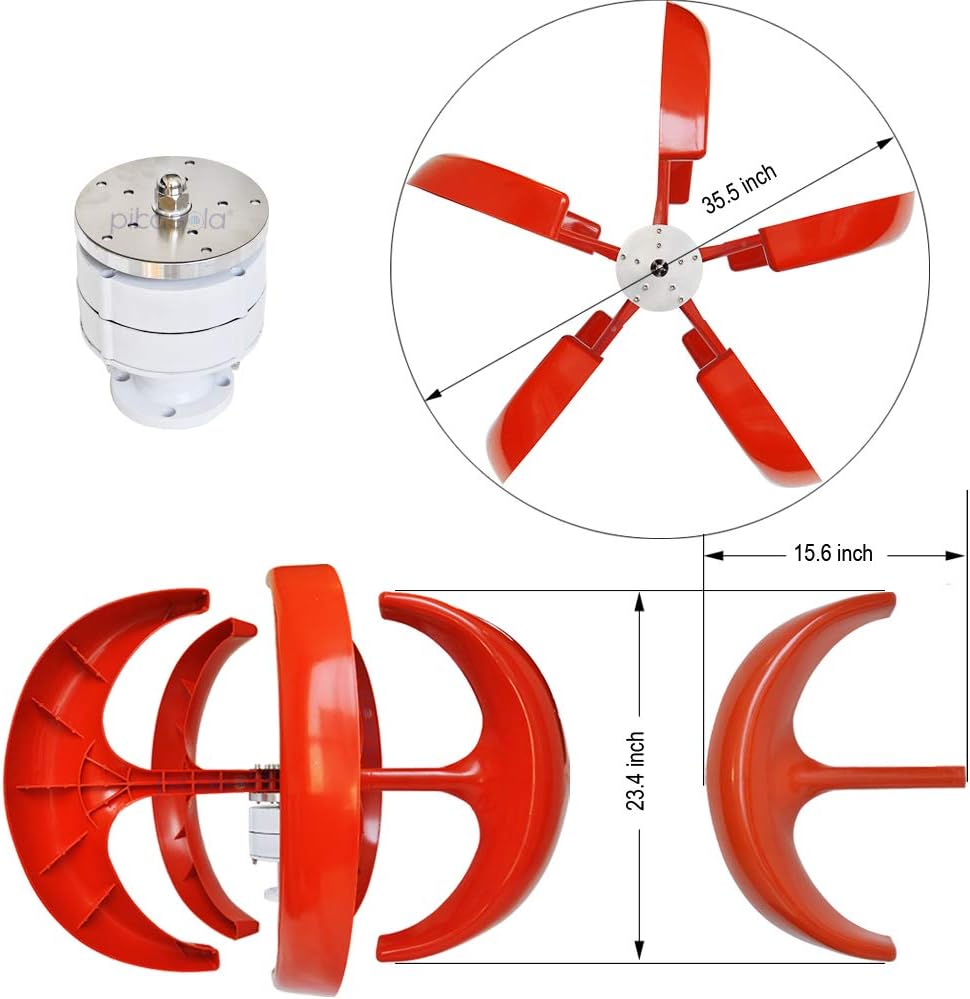

1. The vertical axis wind turbine use 5-leaf double-axis vertical blade design, which looks like a Red lantern. Safety factor is high due to blades be fixed inside by a flange, then not risk of blade falling off.
2. Wind blades adopt reinforced fiber nylon which more durable and strong ability of Anti-wind. Especially with optimized aerodynamic shape and structural design, has a High wind energy utilization. Wind turbine can start by breeze and adapt to 360° wind, no yaw system is needed.
3. Solar panel use grade A solar cell. Monocrystalline solar cell conversion efficiency updates 24%. Aluminum Frame and Toughened glass be encapsulated by waterproof resin, which make solar panel durable and has a long service life.
4.This Wind-Solar hybrid system improves efficiency of power generation greatly. Wind turbine is a good supplement power during solar panel in cloudy or Night. Suit for Marine Boat RV Caravan Home Solar Wind Hybrid System.
5. One Year Warranty: If you have any questions, pls don’t hesitate to contact us. Pikasola will rely to you within 24 hours. We should take charge of our products and care our reputation.
