Vertical Axis Wind Turbine 500W 12V Permanent Magnet Generator 2-Blades For Home, Corporate And Industrial W/Controller, Blue&White

Price: $213.99
(as of Feb 12, 2026 10:37:49 UTC – Details)

This 500W wind turbine has been carefully designed for you who seek green energy combined with modern aesthetics. Unlike traditional horizontal axis wind turbines, this product utilizes an advanced helical design principle that allows it to operate efficiently in low wind speed environments, and with easy installation and maintenance and low noise, it can be efficiently integrated into a variety of environments.

Specification
Material: Iron, Aluminum Alloy, All Copper
Color: White and Blue
Process: Spray-plastic Treatment
Model: NE-500W
Blade Numbers: 2
Flange: DN25
Rated Battery Voltage: 12V/24V
IP Protection Level: IP67
Wheel Diameter: 0.4m/1.31ft
Rated Power: 500W
Rated Voltage: 12V
Rated Wind Speed: 13m/42.65ft/ s
Control System: Electromagnetism
Assembly Required: Yes
Noise: Less Than 62dB
Product Size(L*H): 40*71cm/15.75*27.95in

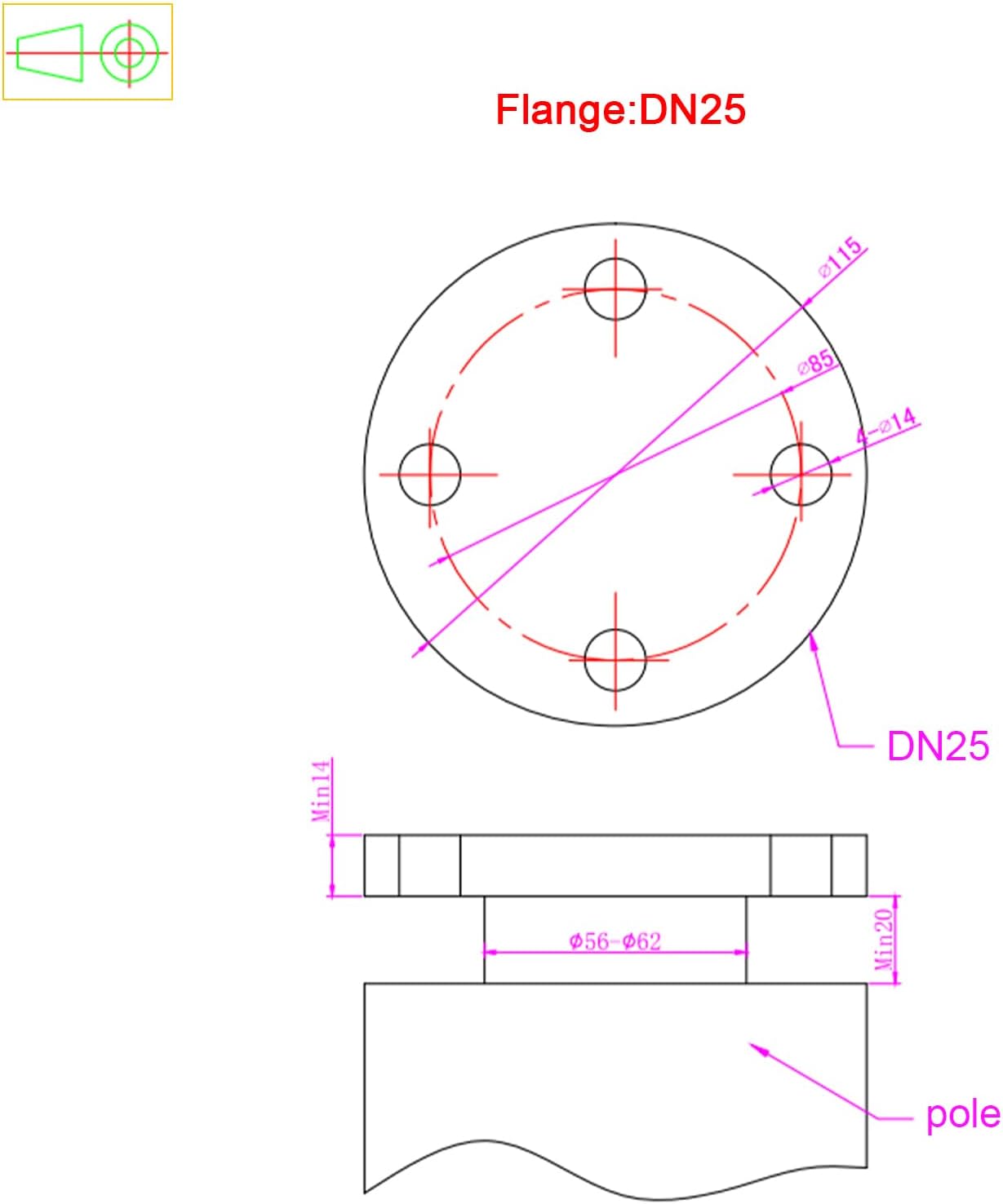

Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in
Number of Connection(Smallest) Holes: 4
Flange Thickness: Min14mm/0.55in
Pylon to Flange Distance: Min20mm/0.79in
Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in
Package Size: 80.8*33*21cm/31.81*12.99*8.27in
Net Weight: 9kg/19.84lbs
Gross Weight: 10kg/22.05lbs

Package Included
1* Wind Turbine
1* Controller
1* English Manual

Notes
1. Please check the style and size before purchasing.
2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.
3. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and the red and black wires to the positive and negative poles of the battery respectively.
4. Please be sure to use gel batteries or lead-acid batteries, not lithium batteries,because the controllers that come with our products are gel batteries.
Reliable and Durable Performance: This Vertical Axis Wind Turbine Generator utilizes an advanced permanent magnet rotor alternator paired with two aluminum alloy blades and special stator design, which effectively reduces the torque resistance of the generator, and at the same time makes the wind turbine and the generator have more favorable matching characteristics and the reliability of the unit operation. In addition, it will automatically brake when it reaches the maximum speed of 300 revolutions per minute, making it more safe
Low Start-up Speed: A 500W High power and a wind speed of up to 42.65ft/s, and the starting wind speed is lower than that of other wind turbines, and the power generation increases gently, so it can generate more power than other wind turbines within a certain range. A high-power tracking intelligent microprocessor controller to effectively regulate the current and voltage
Excellent Generator: Using advanced helical design principle rotating in the horizontal plane brings low wind pressure, which can withstand super strong typhoons and allows it to generate electricity at lower wind speeds. With a precision double-bearing design and a quiet and reliable rotor, it effectively reduces the operating noise, which is less than 62dB. Low vibration and low noise
Easy Installation: All things you need for installation are included to help you get started and complete the installation quickly. Humanized and convenient flange design, easy to install and maintain
Multifunctional Use: The vertical wind turbine is ideally suited for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplem
