Vertical Wind Turbine Model Generator, 3-Blade Windmill Power Charger, Wind Turbine, Vertical axis Wind Turbine,12V Teaching Tool for Scientific Experiments and Model Making

Price: $42.00
(as of Feb 14, 2026 05:57:35 UTC – Details)

Product description

12V Vertical Wind Turbine Generator 3 Blade Charger Windmill Power Teach Mode

Description

This vertical axis wind turbine stands out with its unique design, optimized for low wind speed environments. It breaks the limitations of traditional horizontal axis wind turbines and efficiently captures wind energy regardless of wind direction. It is compact and easy to install, and is suitable for teaching needs in homes, classrooms, or remote areas, providing your children with a good green energy idea and improving their hands-on skills in advance.

Vertical Wind Turbine Model Generator, 3-Blade Windmill Power Charger, Wind Turbine, Vertical axis Wind Turbine

Practical Diodes

The product comes with many diodes, allowing you to convert the three-phase AC power generated by the product to DC power, saving you time and money for buying extra diodes.

Sturdy Base

The round base comes with three holes for fixing so you can reinforce it with screws to make it more stable when working.

Application

The product can be installed at a height of more than 9.84ft to generate electricity, and can also be used to generate electricity with a hairdryer or fan, suitable for scientific experiments, teaching uses, and so on.

How to Install

Specifications

Material PVC, PP, Aluminum Alloy Color White Mount Type Screw Mounted Assembly Required Yes Process Injection Molding Noise 36dB Number of Blades 3 Suitable Installation Height >3m/9.84ft Start Wind Speed 3m/9.84ft/s Rated Wind Speed 12m/39.37ft/s Safety Wind Speed 18m/59.06ft/s Maximum Wind Speed 20m/65.62ft/s Rotating Speed 150-1000rpm Output Power Range 0.1-20W Output Current Range 0.1-3A Motor Type Three Phase Permanent Magnet Pure Copper Brushless Motor

Working Voltage 1-12V Rated Power 20W Product Size(D*H) 22*42cm/8.66*16.54in Base Diameter 9cm/3.54in Fan Blade Length 25cm/9.84in

Package Included

1* Vertical Axis Wind Turbine1* Allen Key1* Capacitance7* DiodesOther Needed Accessories

Notes

1.Please check the size carefully before ordering.

2.Please check the cable, power supply, etc. carefully before use, and take good protective measures to avoid potential safety hazards.

3.Please note that it is just for testing and teaching use, not actual use. To improve the display effect, the turbine needs to be powered by a fan or blow dryer (not included) on it at just the right angle instead of the natural wind.

4.Please pay attention to the direction of the rectifier diode. The positive pole has a white edge, and all diodes need to be in the same direction.

5.Please note that the product power generation is three-phase alternating current (AC), you need to provide your soldering iron (not included) to weld the rectifier diodes to convert them to DC power generation.

6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Long Service Life: Made of high-quality PVC, aluminum alloy, and PP with an injection mold process, the product is anti-corrosion, anti-rust, anti-deformation, anti-UV, waterproof, and dustproof, so that it can adapt to various types of outdoor situations.
Efficient Wind Power Utilization: This compact product with three 9.84-inch vertical and streamlined PVC blades has a large windward area, so it can make full use of wind energy and generate power at a low wind speed of 9.84ft/s.

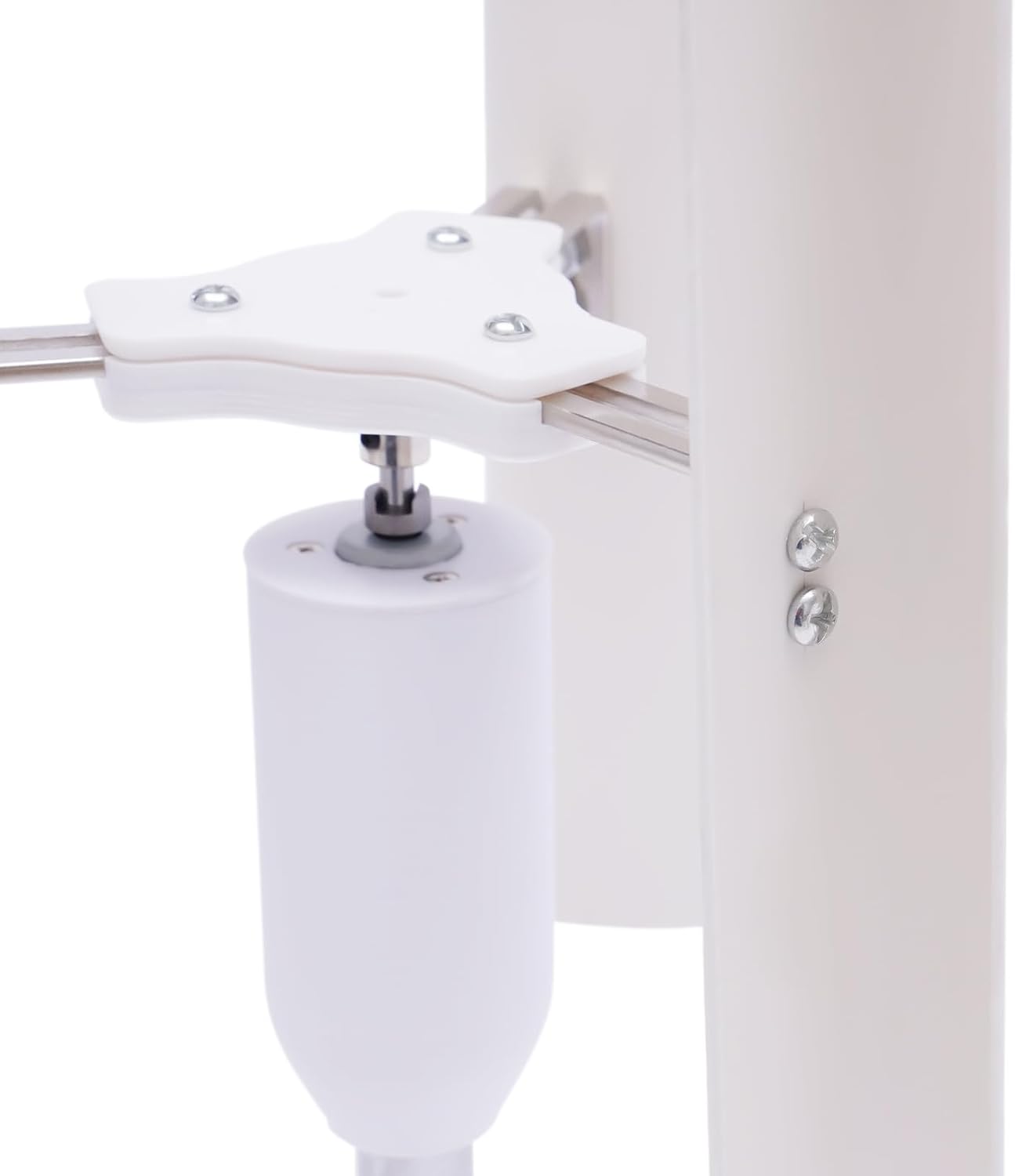

Thoughtful Design: The main body and shaft of the generator are integrated, and PP is used to wrap the generator, extending its service life.
Wide Compatibility: The product features a sturdy structure that can withstand a maximum wind speed of 65.62ft/s and a maximum output of 20W power and 3A current, allowing it to provide you with sufficient energy for lighting power generation and power generation for small power appliances.
Reliable Motor: The pure copper three-phase permanent magnet synchronous brushless motor features high durability, fast heat dissipation, and stability, and can meet the demand for power generation at different wind speeds by adjusting the rotational speed and magnetic flux, which makes the wind turbine’s power generation efficiency higher and the utilization rate of the wind energy greater.
Excellent Teaching Tool: The product as a small wind power generation equipment is compact, lightweight, and easy to use and install. It can be used to cultivate students’ awareness of green life and exercise their hands-on ability, making it an excellent teaching tool.
Green Energy: As a renewable and green energy source, wind energy is an excellent choice of energy source for your power generation as it will produce environmentally harmful substances or emissions.
Low Noise: The noise is only 36dB, which is even less than the noise of the refrigerator, providing you with a quiet and comfortable living environment.
Ideal Gift: Its practical function makes it an ideal gift for your friends, colleagues, and families.
Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
