Wind Turbine Generator Kit, 400W DC 12V Vertical Helix Wind Turbine Generator with Charge Controller, 3 Blade Wind Generator Kit for Marine RV Home Industrial Energy

Price: $158.99
(as of Feb 12, 2026 18:47:24 UTC – Details)

Specification

Condition: New

Controller System: Electromagnetism

Starting Wind Speed: 1.3m(12inch)/s

Cut-in Wind Speed: 2.5m(98inch)/s

Rated Wind Speed: 11m(433inch)/s

Max Instantaneous Wind Speed: ≤40m(1575inch)/s

The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s

Blades Quantity: 3 (with Different Colors)

Diameter of Blades: 0.6m/24inch

Blades Height: 0.8m/31inch

Speed Regulation: Automatic

Rated Voltage: 12V/24V

Rated Power: 400W

Max Power: 450W

Generator Protection Grade: IP67

Work Environment Temperature: 25 to 45℃+

Product Assembly Weight: <10kg/22lbs

Over-speed Protection: Electromagnetic Brake

Blade Material: Glass Fiber

Generator: Maglev Generator

Service Life: 10-15 Years

Installation Instructions: Not Included


Application
It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.

Package Included

1 x Wind Turbine

1 x Controller

3 x Blades (White, Red, Blue)

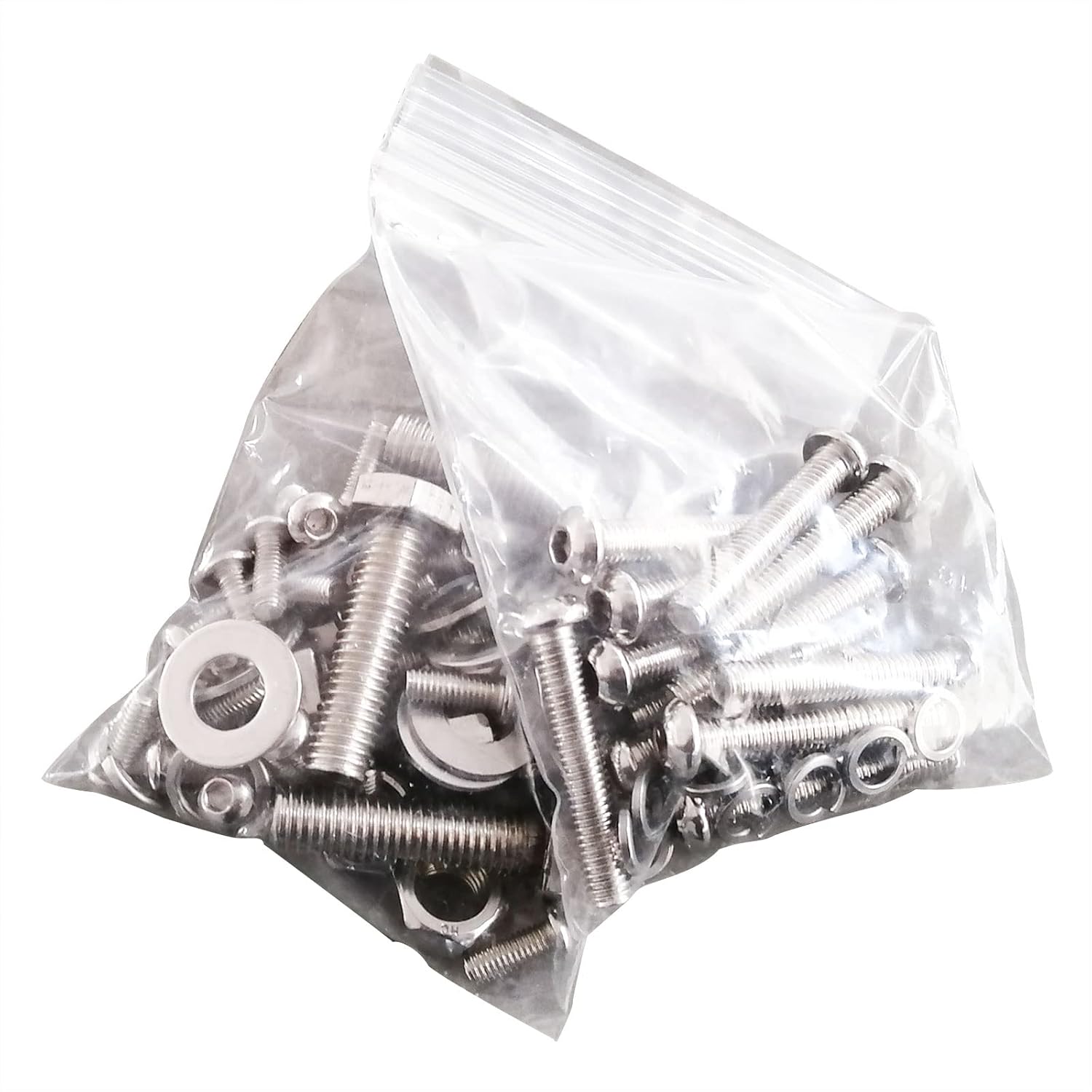

1 x Bag of Screws to Connect the Main Body

1 x Bag of Screws for Connecting the Bracket Blades

Other Accessory for Assembly
【High-quality blades】The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life. Design service life 10~15 years. The blade material is synthetically injection molded with high-strength FRP material.
【Powerful performance】Designed with three-phase AC PMG, it boasts low torque, high-power tracking intelligent microprocessor that can effectively regulating the current and voltage. Maximum RPM protection. No higher than 300RPM, regardless of the wind speed. It obviously increases wind energy utilization and annual power generation.
【Compact & fixed】With dual bearings, the fan movement is more stable. Low vibration and low noise. In addition, with its compact shape, it has the lowest starting wind speed and a larger windward area, enabling it to generate electricity at lower wind speeds. It is ideally suited for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supply.
【Specification】Started wind speed: 2.5 m/s, Cut-in wind speed: 2.5 m/s , Rated Wind Speed: 18 m/s , Max Wind Speed: ≤40 m/s , The instantaneous maximum wind speed≤45m/s, Blades quantity:3 (3 different colors), Rotor Diameter of Blades: 0.6m, Blades height(m): 0.8m, Speed regulation: The wind engle automatically.
、【Low noise】The vertical wind turbine drawing on the design principle of aircraft wings and the horizontal plane rotation, noise can be reduced to a level that cannot be measured in the natural environment.
